MIL-STD-1553 / Synchronous Serial I/O Interfaces fully compatible with CSSA SPIDR Last Updated: 04/26/2023

Please contact AIM-USA for sales or support inquiries:

Email: sales@aim-online.us

Phone +1 267-982-2600

AVAILABLE CONFIGURATIONS:

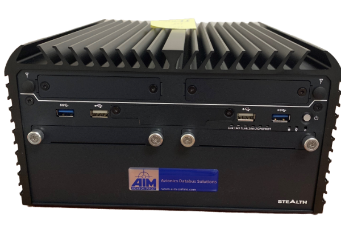

Rugged Ethernet-based System for MIL-STD-1553 and Synchronous Serial I/O

Part Number:

ALPC-862-GL0047

Description:

Small Form Factor System with 2 Dual Redundant MIL-STD-1553 Channels and 4 Ports of Serial IO based on 5402e.  Includes 6 Foot MIL-STD-1553 Cable to connect directly to 1553 transformer bus coupler stub.  Includes 3 Foot Serial IO breakout cable.  Includes 6 Foot power cable.  This rugged fanless mini system designed for high performance is well equipped with an Intel Core i7-10700TE CPU with 8 cores, 32GB of DDR4 RAM, Intel UHD Graphics 630, and a 2TB removable solid-state drive (SSD).  The system additionally includes DVI-I, 2 DisplayPort video connectors, 2 Gigabit Ethernet Ports (RJ45), 4 RS-232 serial com ports, and 4 USB 3.2 ports to be used in the stand-alone mode.  Dimensions are 9.44"(W) x 10.27"(D) x 5"(H).  Software compatibility for MIL-STD-1553 and Serial IO to SPIDR with connection over Ethernet or stand-alone system.

Warranty:

2 Year Warranty included; For 7 Year Warranty add “-7Y” to the part number; Warranty covers any and all defective materials and workmanship and to conform to published specifications during the warranty period.  Warranty does not include cables for MIL-STD-1553 and Power.  Equipment shall be returned to a Seller approved site for warranty service.  Buyer shall coordinate all returns with Seller prior to shipment.  Typical turn-around time is 6-8 weeks after receipt of hardware.

Part Number:

ALPC-862-GL0048

Description:

Small Form Factor System with 8 Ports of Serial IO based on 5402e.  Includes 2x 3 Foot Serial IO breakout cables.  Includes 6 Foot power cable.  This rugged fanless mini system designed for high performance is well equipped with an Intel Core i7-10700TE CPU with 8 cores, 32GB of DDR4 RAM, Intel UHD Graphics 630, and a 2TB removable solid-state drive (SSD).  The system additionally includes DVI-I, 2 DisplayPort video connectors, 4 RS-232 serial com ports, and 4 USB 3.2 ports to be used in the stand-alone mode.  Dimensions are 9.44"(W) x 10.27"(D) x 5"(H).  Software compatibility for Serial IO to SPIDR with connection over Ethernet or stand-alone system.

Warranty:

2 Year Warranty included; For 7 Year Warranty add “-7Y” to the part number; Warranty covers any and all defective materials and workmanship and to conform to published specifications during the warranty period.  Warranty does not include cables for MIL-STD-1553 and Power.  Equipment shall be returned to a Seller approved site for warranty service.  Buyer shall coordinate all returns with Seller prior to shipment.  Typical turn-around time is 6-8 weeks after receipt of hardware.

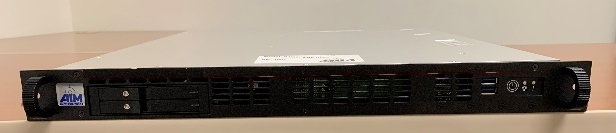

Rack Mount (1U) Ethernet-based System for MIL-STD-1553 and Synchronous Serial I/O

Part Number:

A1U-RACK-GL0045

Description:

1U Rack Mount System with 2 Dual Redundant MIL-STD-1553 Channels and 4 Ports of Serial IO based on 5402e.  Includes 6 Foot MIL-STD-1553 Cable to connect directly to 1553 transformer bus coupler stub.  Includes 3 Foot Serial IO breakout cable.  Includes 6 Foot power cable.  This rack mount system designed for high performance is well equipped with an Intel Core i9 CPU with 16 cores, 32GB of DDR4 RAM, Intel HD Graphics, and a 2TB removable solid-state drive (SSD).  The system additionally includes 1 VGA video connector, 1 RS-232 serial com port, and 6 USB 3.0 ports.  The system provides 6 counter-rotating fans.  Dimensions are 19”(W) x 21”(D) x 1.75”(H).  Software compatibility for MIL-STD-1553 and Serial IO to SPIDR with connection over Ethernet or stand-alone system.

Warranty:

2 Year Warranty included; For 7 Year Warranty add “-7Y” to the part number; Warranty covers any and all defective materials and workmanship and to conform to published specifications during the warranty period.  Warranty does not include cables for MIL-STD-1553 and Power.  Equipment shall be returned to a Seller approved site for warranty service.  Buyer shall coordinate all returns with Seller prior to shipment.  Typical turn-around time is 6-8 weeks after receipt of hardware.

Part Number:

A1U-RACK-GL0046

Description:

1U Rack Mount System with 8 Ports of Serial IO based on 5402e.  Includes 2x 3 Foot Serial IO breakout cables.  Includes 6 Foot power cable.  This rack mount system designed for high performance is well equipped with an Intel Core i9 CPU with 16 cores, 32GB of DDR4 RAM, Intel HD Graphics, and a 2TB removable solid-state drive (SSD).  The system additionally includes 1 VGA video connector, 1 RS-232 serial com port, and 6 USB 3.0 ports.  The system provides 6 counter-rotating fans.  Dimensions are 19”(W) x 21”(D) x 1.75”(H).  Software compatibility for Serial IO to SPIDR with connection over Ethernet or stand-alone system.

Warranty:

2 Year Warranty included; For 7 Year Warranty add “-7Y” to the part number; Warranty covers any and all defective materials and workmanship and to conform to published specifications during the warranty period.  Warranty does not include cables for MIL-STD-1553 and Power.  Equipment shall be returned to a Seller approved site for warranty service.  Buyer shall coordinate all returns with Seller prior to shipment.  Typical turn-around time is 6-8 weeks after receipt of hardware.
